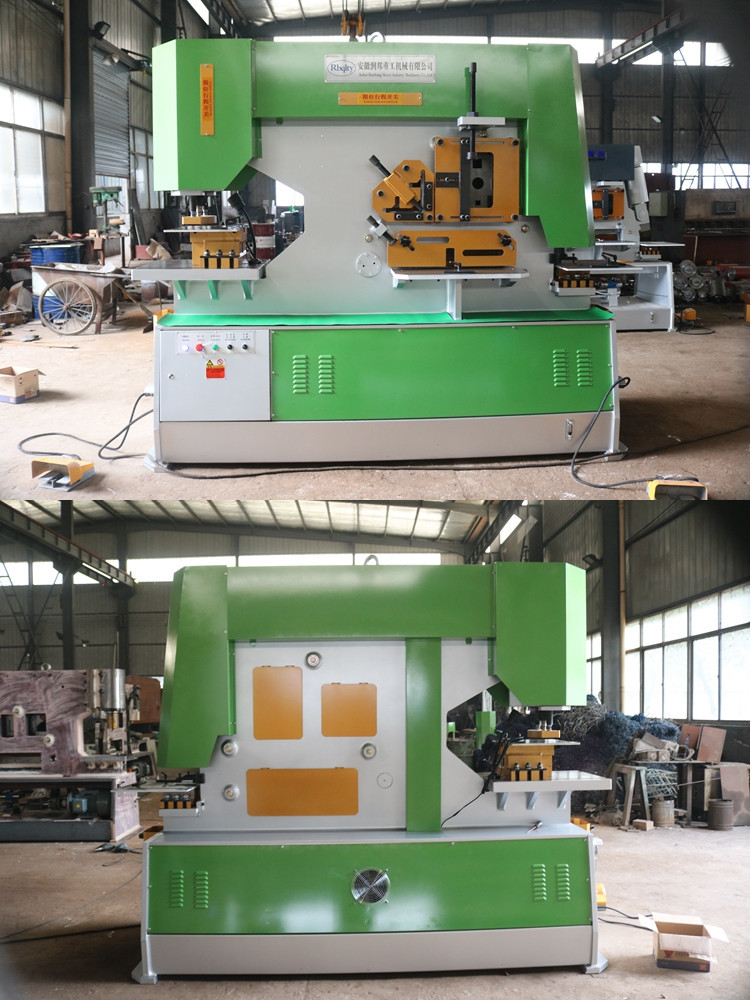

Q35Y-30 液壓聯合沖剪機
油封：日本NOK 油缸：安徽五洋 液壓：德國博世 齒輪泵 上海航發 電機：德國西門子 電氣系統：法國施耐德
關鍵詞：
所屬分類：
- 產品描述
- 配置
- 參數
-
- 商品名稱: Q35Y-30 液壓聯合沖剪機
油封：日本NOK 油缸：安徽五洋 液壓：德國博世 齒輪泵 上海航發 電機：德國西門子 電氣系統：法國施耐德
E21系統控制后擋料應用：雖然不是為了精確或高生產需要，一個聯合沖剪機可以快速的加工許多不同類型的材料，并執行許多不同的過程，必須在一個工廠車間。材料如：板、管、角鋼、棒料都可以加工。能夠沖壓、剪切、彎曲、開槽和剪角，是在任何制造或焊接車間中極其靈活、多功能和必要的機器。標準配置1，堅固鋼架2，帶刻度的大型沖壓臺3，2個獨立液壓缸4，2個腳踏板控制5，2個大模具開口，用于大尺寸沖孔7，5個廣泛應用的工作站8，所有5個工作站上的電源點動9，剪板臺和剪角臺10，可調行程控制裝置11，沖床：活動工作燈可選功能1，液壓系統的可選過載保護2，可選電動后擋料3，沖孔法蘭、槽鋼和橫梁用可拆卸墊枕4，可選兩缸同時工作5，可選各種沖孔折彎模具

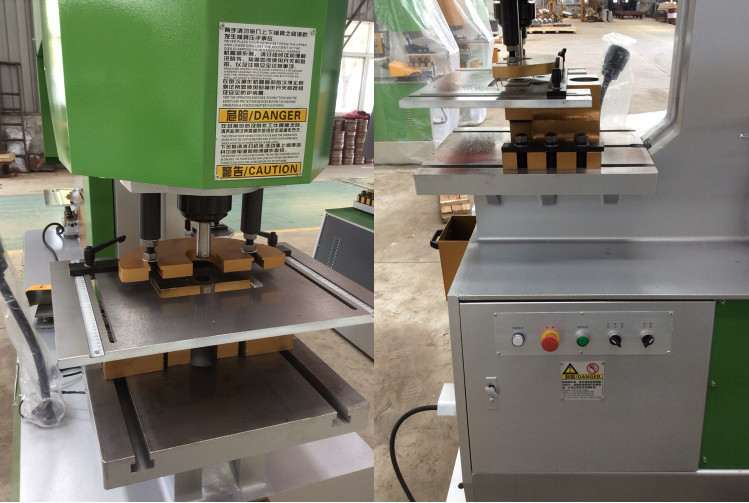

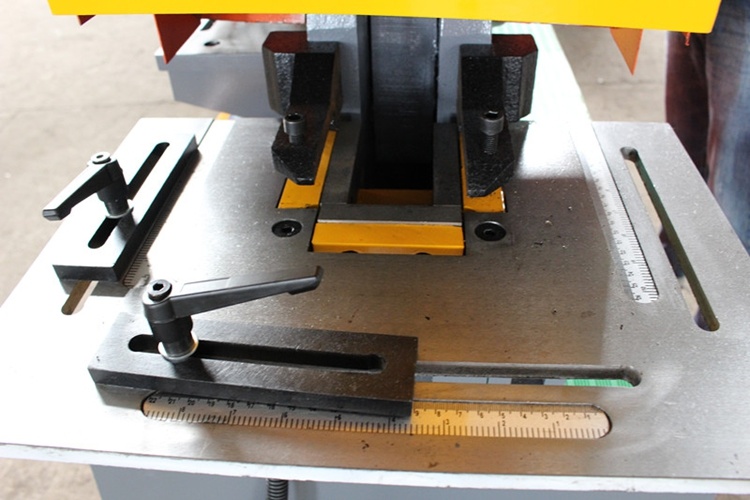

Punching Station
The design of the bolster plate, makes it possible to perform a wide range of punching. This includes the punching of flat bar, flange, angle, and channel. The station comes standard with quick change punch and die holders, as well as a swing away stripper. Also included are x & y coordinate gauge stops. This feature is useful for repetitive work.

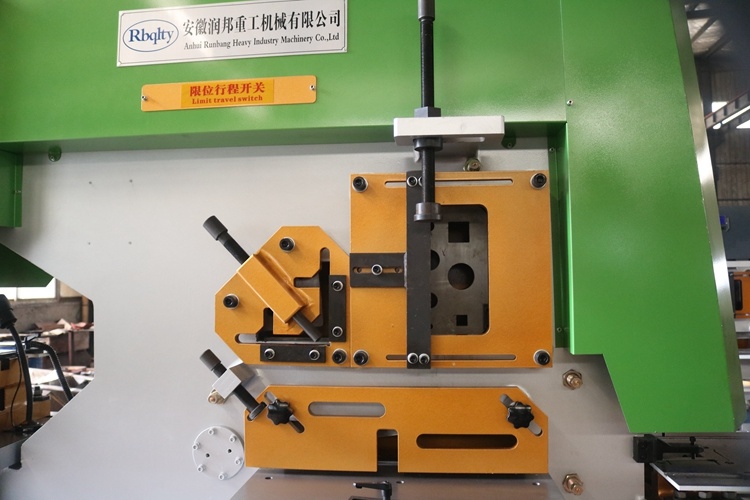

Section Cutting
This station comes standard with blades for cutting solid round and square stock. Alternatively, it can be equipped with easily removable blades for cutting tees, channel, and I-beam profiles. There is also an adjustable hold down for clamping the profile during the cutting process.
Angle Cutting
Blades are four sided and easily installed and rotated. The cavity is designed in such a way to allow mitering at 45° angle. An easy adjustable hold down provides for proper clamping of the material while it is being sheared.
Notching
This station comes standard with rectangular notching blades which allow side notching, therefore allowing notching of unlimited widths. Vee notching blades can easily be installed, and are available as an option.
-
機器部件油封：日本NOK油缸：安徽五洋液壓：德國博世齒輪泵：上海航發電機：德國西門子電氣系統：法國施耐德標準模具清單1，沖孔1套（單孔沖孔）2，圓鋼方鋼剪切1套3，剪板1套4，角鋼切割1套5，剪角1套
-
參數
型號 No. Q35Y-12 Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40 Q35Y-50 壓力 Ton 35 60 90 120 160 200 250 剪切厚度 mm 12 16 20 25 30 40 50 板料強度 N//mm2 ≤450 ≤450 ≤450 ≤450 ≤450 ≤450 ≤450 刀片角度 ° 7° 7° 8° 8° 8° 8° 8° 剪切尺寸(T*W) mm 12*160 6*300 16*250 8*400 20*330 10*480 25*330 16*600 30*335 20*600 40*335 30*600 50*335 40*600 行程長度 mm 35.00 80.00 80.00 80.00 80 100.00 80.00 行程次數 Times/Min 10~18 9~25 10~28 9~18 7~16 6~16 8~12 喉口深度 mm 115 300 355 400 600 530 600 沖孔厚度 mm 12.00 16.00 20.00 25.00 26 35.00 50.00 最大沖孔直徑 mm 25 25 30 35 38 40 35 電機 kw 4 4 7.5 7.5 11 18.5 32 尺寸 mm 950*550*1800 1640*730*1770 1860*800*1900 2355*960*2090 2680*1100*2300 2900*1150*2500 3000*1150*2600 重量 Ton 1000 1800 2400 4200 7000 9000 12000 型材剪切尺寸
結構 圓棒 方棒 角鋼 T型鋼 工字鋼 U型鋼 90° 剪切 45°剪切 90°剪切 45°剪切 Q35Y-12 35 mm 30*30 86*86*8 / / / / / Q35Y-16 45 mm 40*40 120*120*12 50*50*5 125*125*12 60*60*8 120*74*5 120*53*5.5 Q35Y-20 50 mm 50*50 140*140*12 70*70*10 140*140*12 70*70*10 160*88*6 160*63*6.5 Q35Y-25 60 mm 50*50 160*160*14 60*60*6 160*160*14 80*80*10 200*102*9 200*75*9 Q35Y-30 60 mm 50*50 160*160*14 60*60*6 160*160*14 80*80*10 200*102*9 200*75*9 Q35Y-40 70 mm 60*60 200*200*18 80*80*10 200*100*18 100*100*10 300*130*13 300*89*11.5 Q35Y-50 80 mm 65*65 200*200*18 100*100*10 200*200*18 120*120*12 320*130*13 320*92*12
產品描述
Punching Station
The design of the bolster plate, makes it possible to perform a wide range of punching. This includes the punching of flat bar, flange, angle, and channel. The station comes standard with quick change punch and die holders, as well as a swing away stripper. Also included are x & y coordinate gauge stops. This feature is useful for repetitive work.
Section Cutting
This station comes standard with blades for cutting solid round and square stock. Alternatively, it can be equipped with easily removable blades for cutting tees, channel, and I-beam profiles. There is also an adjustable hold down for clamping the profile during the cutting process.
Angle Cutting
Blades are four sided and easily installed and rotated. The cavity is designed in such a way to allow mitering at 45° angle. An easy adjustable hold down provides for proper clamping of the material while it is being sheared.
Notching
This station comes standard with rectangular notching blades which allow side notching, therefore allowing notching of unlimited widths. Vee notching blades can easily be installed, and are available as an option.
